Low radar signature
No radio masking, thanks to the virtual absence of carbon fiber
Stealth mode
the drone can fly over an area with the engine switched off for greater acoustic
discretion
Silence and endurance
4 hours of flight and silence mode (engine off the ability 80 km datalink Antenna)
Lightness by design
Only 11 kg for an easy handlaunch
Low logistical footprint
The UAV fits into a single 145 cm x 60 cm x 45 cm transport crate
Group 1 UAV
Distinctions
-
Endurance
4h
-
Payload
1,5 kg
-
Data Link
80 Km
-
Certification
SORA SAIL II
-
Noise Perception
ON > 300m / OFF > 100m
-
Assembly Time
3 min
-
Take-off
Hand launch
-
Shipping
1,6m x 0,4m x 0,55m
Specifications
Low-cost performances
The lightest in its class, making it safe to be hand launched. Designed to be shipped in a 1,45m box. Multi-payload capability.
Request a demo
Wingspan
4.88 m
Length
2.24 m
MTOW
11 Kg
Take off / Landing
5m Handlaunch 30 m Belly
45Km/h
Stall speed
60Km/h
Cruise speed
120Km/h
Max speed
5000 m
Max altitude
Low logistical footprint
• 3 min assembly by 2 operators
• Hand launch
Minimum training
• 1 week for operators training
• 1 week MRO training
• Programmed waypoints
• Racetrack mode
Maximum reliability
• Automatic take-off & landing
• Flight Termination System (eg. Return To Home, safe impact)
• Sensors redundancy
Payloads

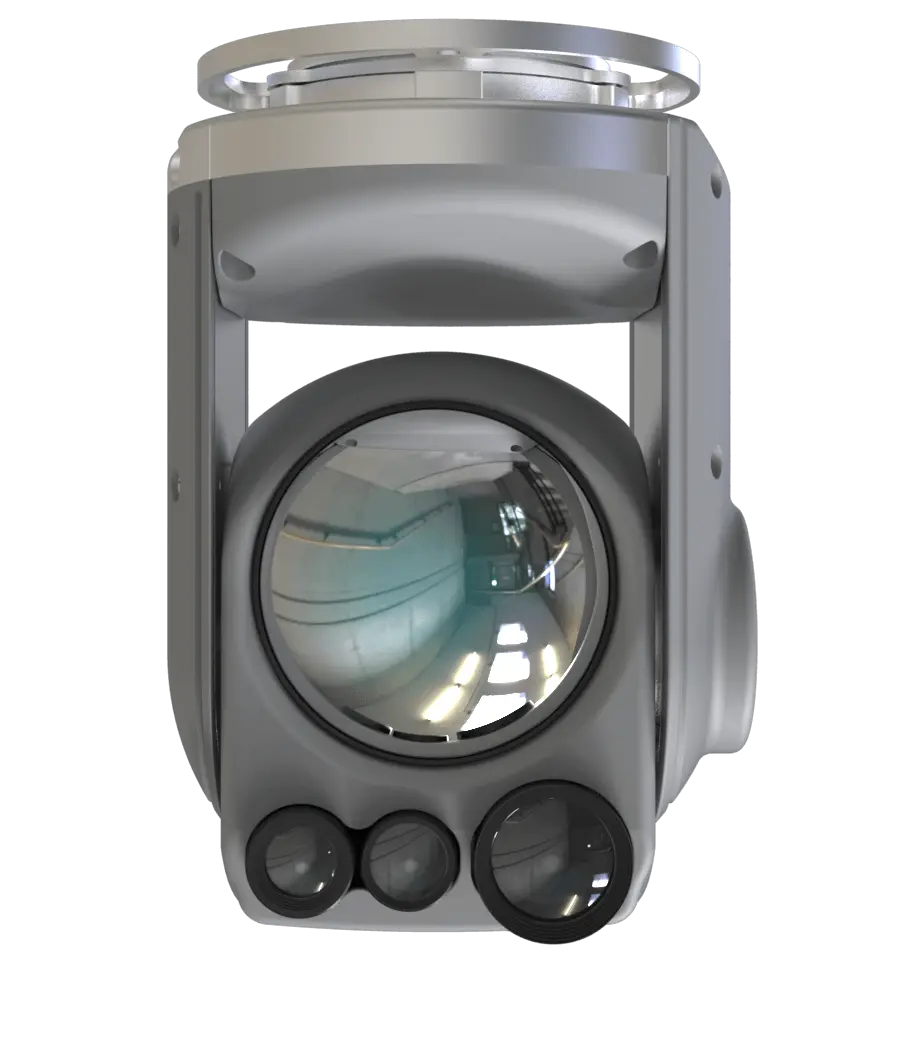

Raptor
Visible
1980x720p
ZOOM : x40 Optical / x2 Digital
Infrared
1980x720p
ZOOM : x8 Digital
Weight
640 gr
Laser pointer
Discover
STRIX 500 pack
Your Strix 500 Ground Control Station Pack
Case Compact inside
Dimension : 1,6m x 0.4m x 0.55m
UAV Strix 425
Quantity : X1
GETAC v110 Laptop
Quantity : X2
Game Pads
Quantity : X2
Radio control device
Quantity : X1
Battery loader
Quantity : X2
Antenna Stand
Quantity : X1
Antenna S / M / L / XL Range
Quantity : X1

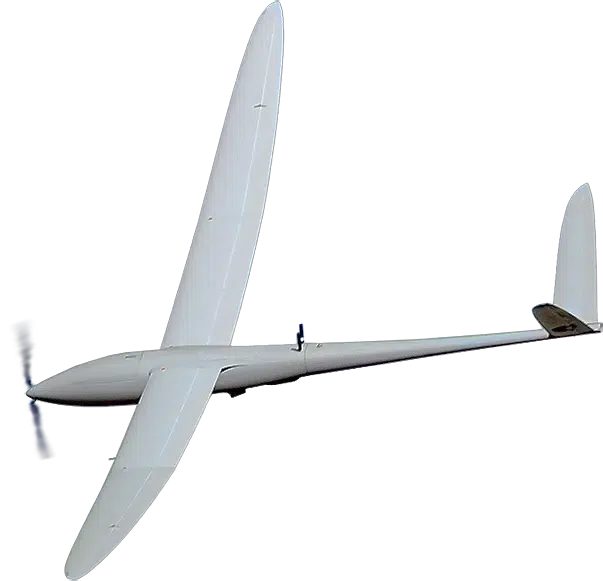

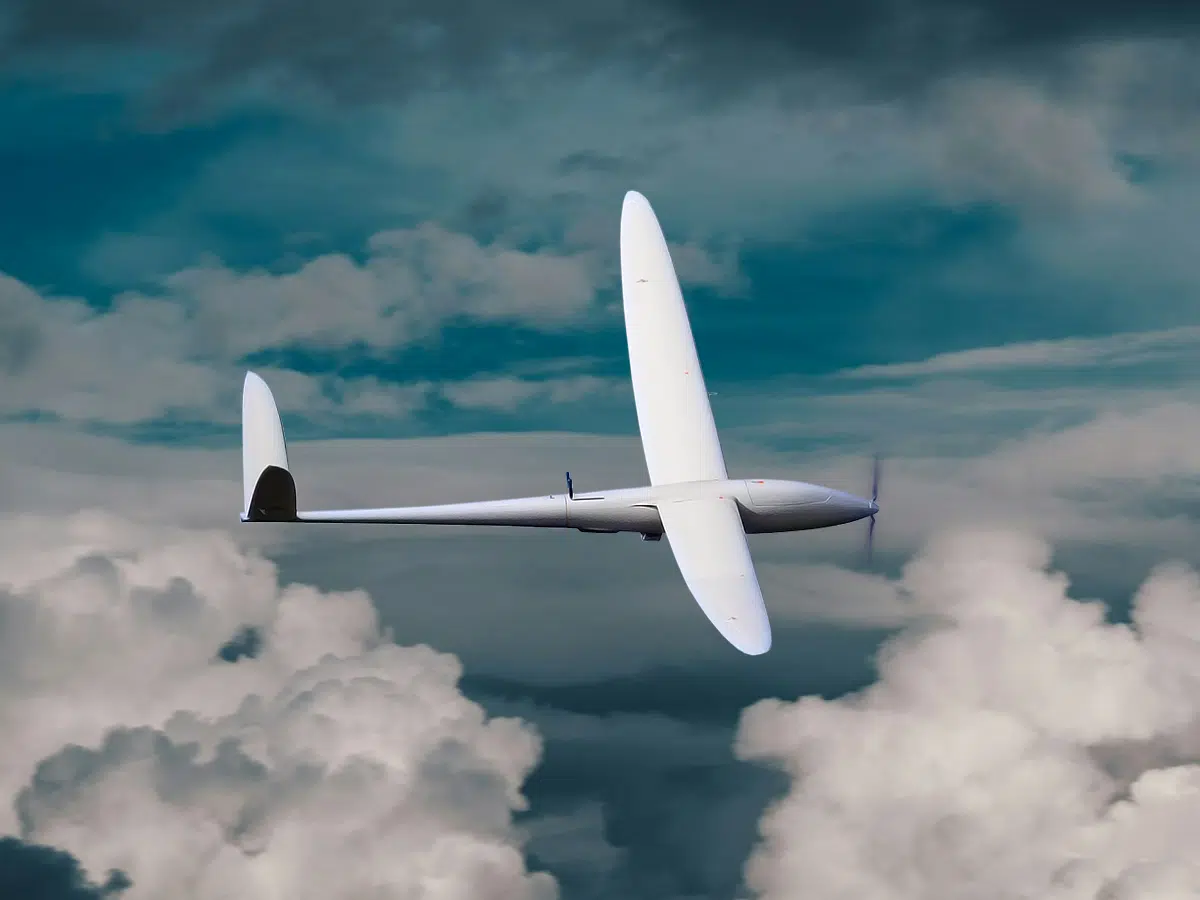

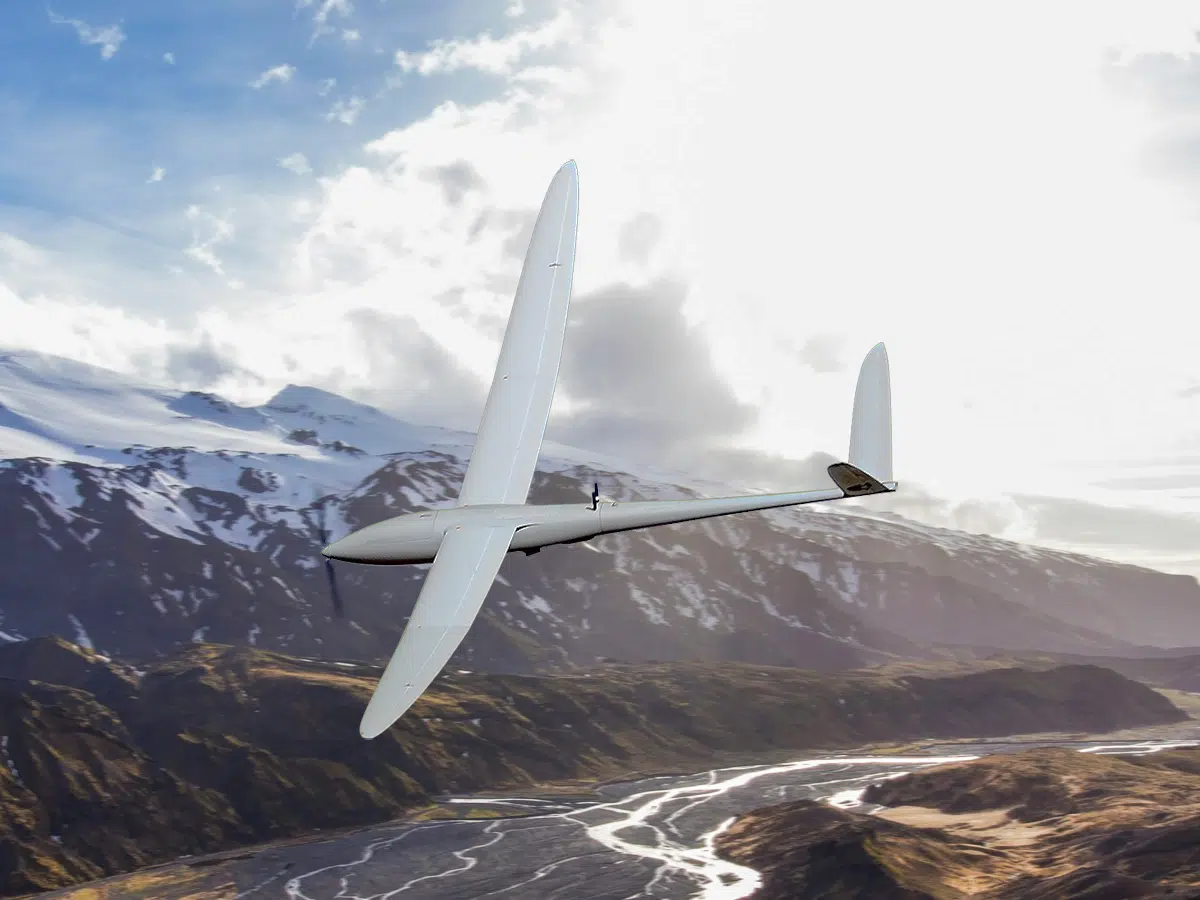

STRIX 500
EOS Technologie
Request your uav strix 500 demo
STRIX 500 is the last UAV 500 series support by EOS Technologie.
